PathWay EC

How to replace the SIM cards on your Dejero PathWay EC

  1. Power down your PathWay EC.
  2. Remove the five screws holding down the top lid. There are two screws on either side and one screw located on the top.

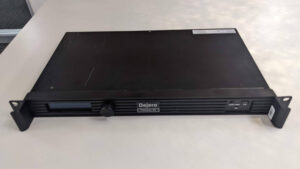

    PathWay unit
  3. With the lid removed, locate the SIM cards on the left side of the PathWay EC. They are in a DIMM module, oriented vertically.

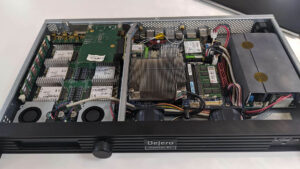

    PathWay unit opened

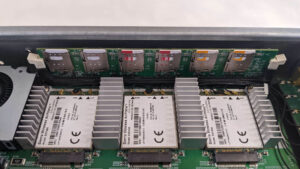

    PathWay unit SIM slots
  4. Swap the existing SIMs with the new ones we sent you. Ensure that each SIM is inserted into the proper SIM slot:
    SIM 1 – AT&T
    SIM 2 – Verizon
    SIM 3 – T-Mobile
    SIM 4 – T-Mobile
    SIM 5 – Verizon
    SIM 6 – AT&T

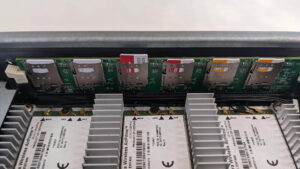

    A SIM that is not inserted properly will look like SIM 3, shown here:
    PathWay unit SIM slots filled
  5. Place the lid back on the PathWay EC and replace the five screws.
  6. Power up the PathWay EC and ensure that all six SIMs are appearing in the GUI.
  7. Contact Dejero Support to activate the new SIMs at: 1 866 808 3665 x2 or support@dejero.com.
