Dejero GateWay M Series

Fast, reliable, and secure remote connectivity

Dejero GateWay M Series

The router is part of the Dejero GateWay remote connectivity solution that provides fast, reliable, and secure access to the public Internet and private networks while in the field.

GateWay blends multiple network connections to provide carrier diversity and high throughput. The router is available in a 1U rack-mount form-factor with integrated modems that connect to external antennas for optimal performance. The router also supports VPN tunneling for secure access to private networks.

The GateWay solution allows crews working on location to access their newsroom or media asset management systems, quickly send and receive large files, access cloud services, communicate with their colleagues via VoIP, and enables any other application requiring internet access—simplifying remote workflows and increasing productivity.

Reliable-2-iconRELIABLE

BUILT-IN INTELLIGENCE

Our patented Smart Blending technology blends any and all available network connections, creating a single virtual network of networks that’s robust and reliable.

HIGH THROUGHPUT

RELIABLE CONNECTIONS

Six embedded modems allows the use of SIMs from a greater number of mobile network providers, resulting in greater carrier diversity, boosting reliability and throughput.

Security-iconSECURE

PEACE OF MIND

Dejero’s technology dynamically routes packets over multiple connections, inherently providing a level of security. Establishing a VPN connection adds an extra layer of security.

Manage-iconCONTROL

CLOUD MANAGEMENT

Cost-effective alternative for remote live feeds from fixed-location cameras. Also provides greater flexibility as to where you can place those cameras.

PRODUCT SPECIFICATIONS

NETWORK CONNECTIONS

CELLULAR Up to 6 x 3G/4G/LTE
ETHERNET Up to 6 x 1 Gb/s ports for LAN, WAN connections including satellite (BGAN, Ku-band, Ka-band), fixed line (cable, DSL), microwave, and Wi-Fi
Wi-Fi Dual-band wireless hotspot (802.11 a/b/g/n/ac)

USER INTERFACE

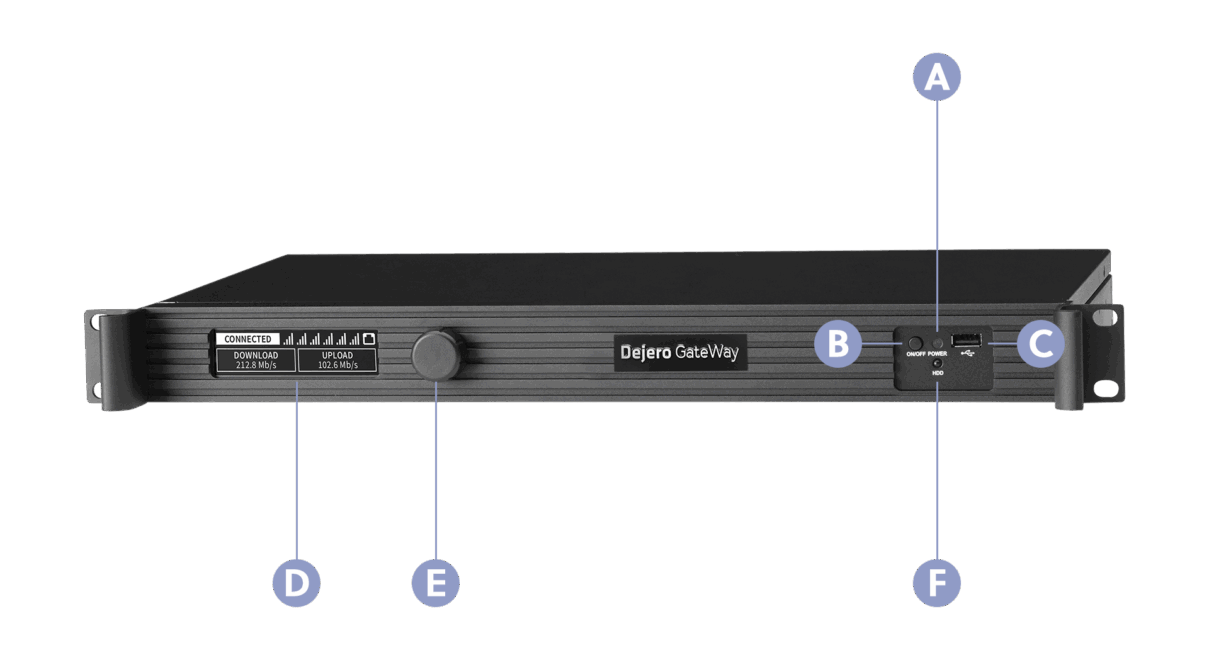

INDICATORS Front LEDs for power and disk activity Graphical display for modem connection/activity, and Ethernet connection
CONTROL Front panel dial and power switch
Setup and monitoring via Dejero Control

POWER

SUPPLY 100-240 VAC, 50-60 Hz, 1.0A max.
CONSUMPTION Max 100 W

PHYSICAL

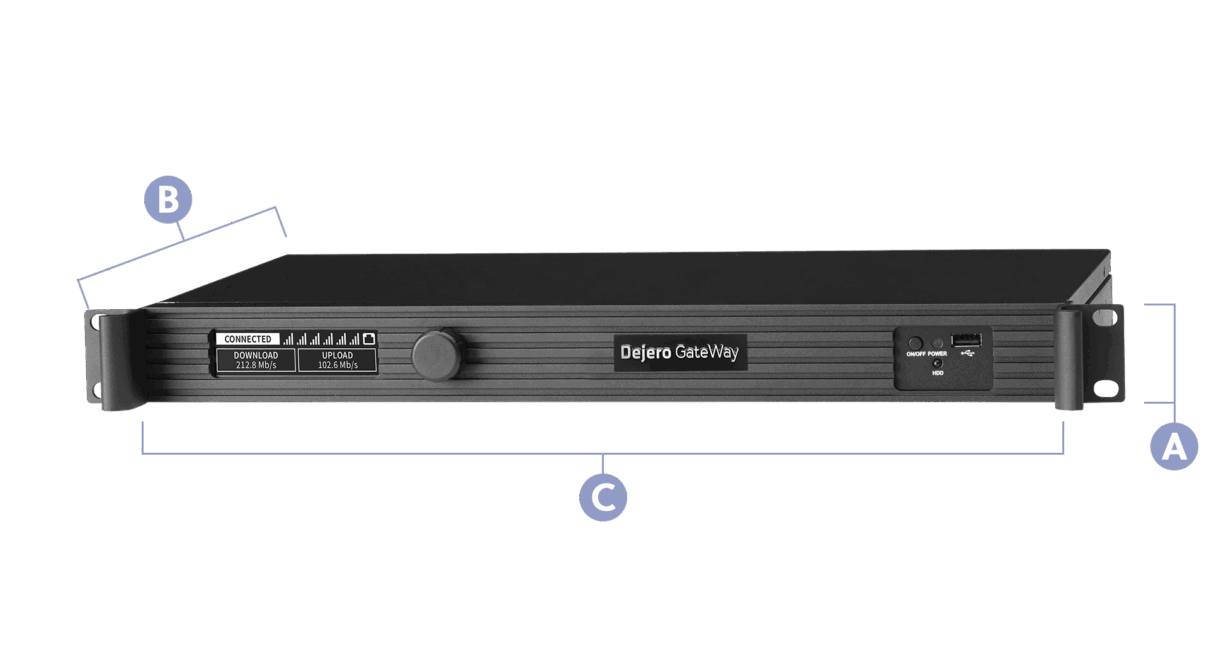

DIMENSIONS 1U rack-mount
42.7 x 24.9 x 4.4 cm (16.8 x 9.8 x 1.7 inches)
WEIGHT 4.2 kg (9.2 lbs)
OPERATING TEMPERATURE -10° C to 50° C (14° F to 122°F)

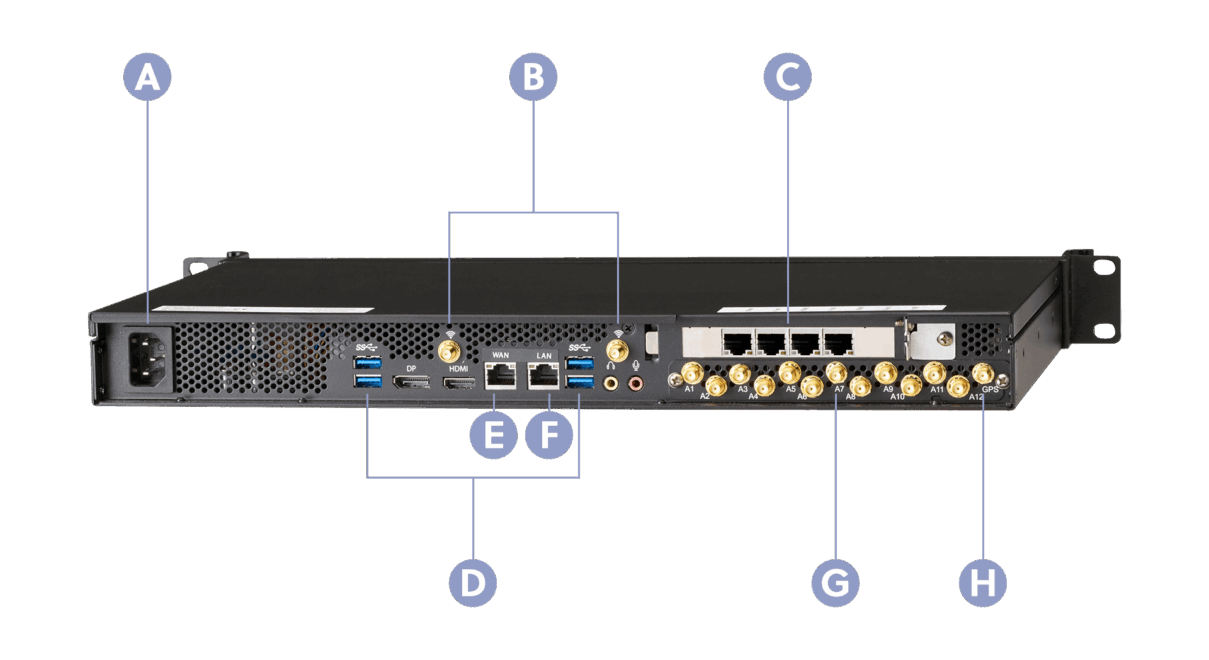

CONNECTORS Up to 6 x RJ45 Ethernet, up to 12 cellular antennas, 1 x GPS antenna, 2 x Wi-Fi antennas, AC power

KEY FEATURES

MAM ACCESS

Download b-roll or upload complete packages to MAM systems



EXTENSION OF THE NEWSROOM

Remotely access newsroom systems as if you’re at the station



SEND AND RECEIVE LARGE FILES

Use FTP services to transfer files to and from the station



CLOUD WORKFLOWS

Cloud-based tasks like proxy editing can be done remotely



REAL-TIME PUBLISHING

Update your station’s web content with new information as it happens



RESEARCH ONLINE

Use the web to research stories



VoIP COMMUNICATION

Use your office extension number wherever you are



TRANSPORT VIDEO FEEDS

Connectivity for cameras with built-in or third-party encoders



Design, features and specifications are subject to change without notice.

Looking for a printable copy of the Dejero GateWay product brief?

Download the product brief

ACCESSORIES

Dejero BackPack

Backpack

The backpack makes it easier for you to move around and quickly change position while covering news, sports and live events. Features include a dedicated battery compartment, expandable bottom compartment for carrying extra cables and a battery, and built-in cable management.

Dejero Engo Sling Bag

Sling Bag

The sling bag can be positioned on your hip to provide easy access to the touch screen for controlling the EnGo and monitoring the shot. Or it can slide behind you and out of the way. Features include an adjustable shoulder strap and pouch for accessories.

EnGo Vehicle Mount Kit

Vehicle Mount Kit

The Vehicle Mount Kit is an ideal solution for crews wanting versatility. The EnGo can be mounted in a vehicle and connected to rooftop antennas for increased cellular network reception or live shots while driving. And it can quickly be dismounted and placed in a backpack or sling bag, or mounted on a camera for mobility while on location. One transmitter does it all. Learn more...

GATEWAY SOLUTION DIAGRAM

GateWay200-SolutionDiagram
