Tech
Specs

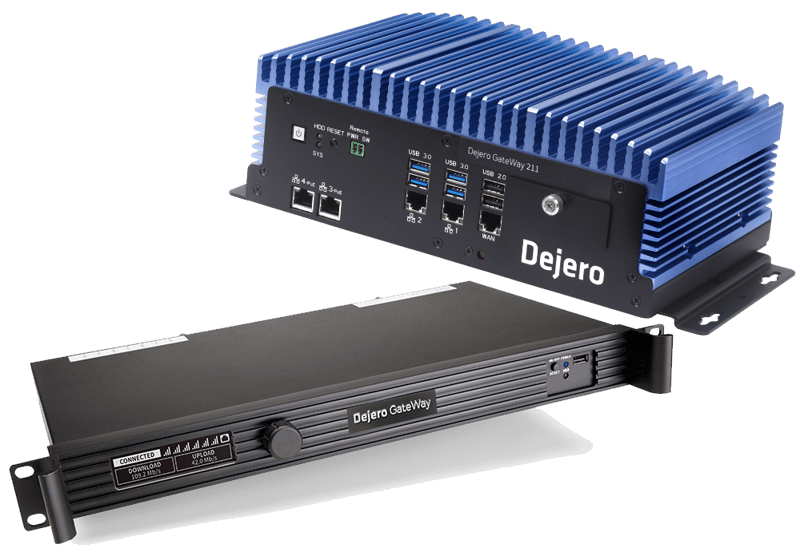

GateWay
M3E2

GateWay
M6E6

GateWay
M6E6F

GateWay
211

NETWORK
CONNECTIONS

Cellular

3 x 3G/4G/LTE

Ethernet

2 x 1 Gb/s ports

Wi-Fi

Dual-band wireless
(802.11 a/b/g/n/ac)

Cellular

6 x 3G/4G/LTE

Ethernet

6 x 1 Gb/s ports

Wi-Fi

Dual-band wireless
(802.11 a/b/g/n/ac)

Cellular

6 x 3G/4G/LTE/LTE-A/FirstNet

Ethernet

6 x 1 Gb/s ports

Wi-Fi

Dual-band wireless
(802.11 a/b/g/n/ac)

Cellular

3 x 3G/4G/LTE/LTE-A/FirstNet

Ethernet

4 x 1Gb/s ports for LAN (2 x PoE)
1 x 1Gb/s port for WAN

Wi-Fi

2 x dual-band wireless (802.11 a/b/g/n/ac)
3 x 3 MIMO Technology up to 1.3 Gb/s

USER INTERFACE

Indicators

Front LEDs for power and disk activity
Graphical display for modem connection/activity, and Internet connection

Control

Front panel dial and power switch
Setup and monitoring via Dejero Control

Indicators

Front LEDs for power and disk activity
Graphical display for modem connection/activity, and Internet connection

Control

Front panel dial and power switch
Setup and monitoring via Dejero Control

Indicators

Front LEDs for power and disk activity
Graphical display for modem connection/activity, and Internet connection

Control

Front panel dial and power switch
Setup and monitoring via Dejero Control

Indicators

LAN/WAN indicator LEDs





Control

Setup and monitoring via Dejero Control

COMPUTE

CPU

??????

Storage

????

CPU

??????

Storage

????

CPU

x86

Storage

64 GB

Formats

480i 29.97, 576i 25, 720p 50/59.94/60, 1080i 25/29.97/30, 1080p 23.98/25/29.97/30/50/59.94/60

Encoding

H.264 AVC and H.265 HEVC, adaptive bitrate

In

3G-SDI, HDMI 1.3

POWER

Supply

100-240 VAC 50-60 Hz 1.0A max

Consumption

Max 100 W

Supply

100-240 VAC 50-60 Hz 1.0A max

Consumption

Max 100 W

Supply

100-240 VAC 50-60 Hz 1.0A max

Consumption

Max 100 W

Supply

9-36 VDC

Consumption

Max 100 W (with PoE in use)

PHYSICAL

Dimensions (H x W x D)

1U rack-mount
4.4 x 42.7 x 24.9 cm
(1.7 x 16.8 x 9.8 inches)

Weight

4.17 kg (9.2 lbs)

Operating Temperature

-10° C to 50° C (14° F to 122° F)

Connectors

2 x RJ45 Ethernet
6 cellular antennas
1 x GPS antenna
2 x Wi-Fi antennas

Dimensions (H x W x D)

1U rack-mount
4.4 x 42.7 x 24.9 cm
(1.7 x 16.8 x 9.8 inches)

Weight

4.17 kg (9.2 lbs)

Operating Temperature

-10° C to 50° C (14° F to 122° F)

Connectors

6 x RJ45 Ethernet
12 cellular antennas
1 x GPS antenna
2 x Wi-Fi antennas

Dimensions (H x W x D)

1U rack-mount
4.4 x 42.7 x 24.9 cm
(1.7 x 16.8 x 9.8 inches)

Weight

4.17 kg (9.2 lbs)

Operating Temperature

-10° C to 50° C (14° F to 122° F)

Connectors

6 x RJ45 Ethernet
12 cellular antennas
1 x GPS antenna
2 x Wi-Fi antennas

Dimensions (H x W x D)

Fanless vehicle mount
15.62 x 10.64 x 26.42 cm
(6.1 x 3.8 x 10.4 inches)

Weight

4.7 kg (10.4 lbs.)

Operating Temperature

-20° C to 60° C (-4° F to 140° F)

Connectors

5 x RJ45 Ethernet
6 x SMA (LTE-A)
6 x SMA-RP (WiFi)
2 x USB 2.0
4 x USB 3.0
