Tech
Specs

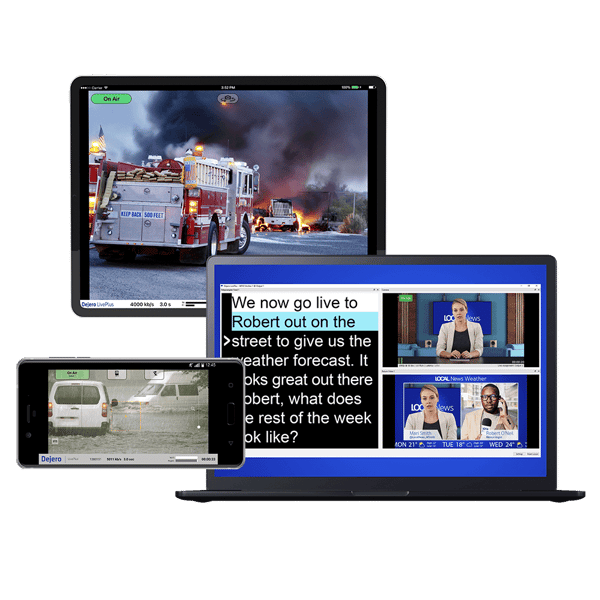

LivePlus Family

LivePlus for
Windows

LivePlus for
iOS

LivePlus for
Android

KEY FUNCTIONS

Live

Transmit broadcast-quality live video over IP networks

Store & Forward

Store, Edit & Forward


Return Video

Receive up to 2 ultra-low latency return feeds from a Dejero CuePoint

Store & Forward

Record video for later transfer

Store, Edit & Forward

Record video, edit with video editing app, import, and transfer

Return Video

Store & Forward

Record video for later transfer

Store, Edit & Forward

Record video, edit with video editing app, import, and transfer

Return Video

OPERATING SYSTEM

Software Requirements

Windows 10

Hardware Requirements

CPU: 6th Generation Intel Core (Skylake 2015) processor or greater

Intel Quick Sync Video

Software Requirements

iOS version: 14.2 - 14.3

Hardware Requirements

iPhone 6S/6S+
iPhone SE(1st and 2nd Gen)
iPhone 7/7+
iPhone 8/8+
iPhone X
iPhone 11 Series
iPhone 12 Series
iPad Air,/Air 2
iPad 2017, 2018
iPad Pro
iPad Mini 2,3,4
iPod Touch 7th Gen

Software Requirements

Android version: 7.0 - 11.0

Hardware Requirements

RAM: 3 GB and higher
CPU: ARMv64

Samsung Galaxy S20
Samsung Galaxy S10
Samsung Galaxy S9/9+
Samsung Galaxy S8/8+
Samsung A5
Google Pixel
Google Pixel 3
Google Pixel 2 XL
Nokia 8
Huawei P10 Lite
Huawei P20
Motorola Moto G5
Motorola Moto X4
Samsung Galaxy Tab S3
LG G Pad IV 8.0

VIDEO

Source

Internal camera or external USB camera

SDI or HDMI camera connected via the Blackmagic Recorder 3G capture card

Capture Resolutions

1080, 720, 540, 480

Encoding Bitrate

Live Bandwidth: adaptive bitrate up to 20 Mb/s, as configured in Settings, and based on device capabilities and network conditions

Live Resolution: adaptive video transport resolution based on current network conditions, up to 1080p at full bandwidth

Latency

As low as 0.8 seconds

Codec

MPEG-4 (H.264 AVC)

Source

Rear- or front-facing camera on device

Capture Resolutions

1080, 720, 540, 480

Encoding Bitrate

Live Bandwidth: adaptive bitrate up to 10 Mb/s, as configured in Settings, and based on device capabilities and network conditions

Live Resolution: adaptive video transport resolution based on current network conditions, up to 1080p at full bandwidth

Recording: 2.0 / 4.0 / 6.0 Mb/s

Latency

As low as 0.8 seconds

Codec

MPEG-4 (H.264 AVC)

Source

Rear- or front-facing camera on device

Capture Resolutions

1080, 720, 540, 480

Encoding Bitrate

Live Bandwidth: adaptive bitrate up to 10 Mb/s, as configured in Settings, and based on device capabilities and network conditions

Live Resolution: adaptive video transport resolution based on current network conditions, up to 1080p at full bandwidth

Recording: 2.0 / 4.0 / 6.0 Mb/s

Latency

As low as 0.8 seconds

Codec

MPEG-4 (H.264 AVC)

AUDIO INPUT

Devices

Built-in microphone or external microphone connected to headphone jack, Bluetooth or USB port.

Embedded audio from camera SDI or  HDMI output.

Channels: 2-channels

Encoding

Live: Opus 48 kHz, 16-128 kb/s adaptive bitrate, 16-bit audio depth

Devices

Built-in microphone or external microphone connected to headphone jack or lightning port.

Channels: mono

Encoding

Live: Opus 24-48 kHz, adaptive bitrate from 8 kb/s to 128 kb/s

Recording: AAC 24-48 kHz, 64 kb/s

Devices

Built-in microphone or external microphone connected to headphone jack or USB, lightning port.

Channels: mono

Encoding

Live: Opus 24-48 kHz, adaptive bitrate from 8 kb/s to 128 kb/s

Recording: AAC 24-48 kHz, 64 kb/s

AUDIO RETURN/OUTPUT

Source

IFB from a Dejero receiver
Return Video Audio from the Dejero CuePoint

Output Device

Output: via a headset or speaker connected via headphone jack, Bluetooth device or USB port

Source

IFB from a Dejero receiver

Output Device

Output: via headphone jack or Bluetooth device

Source

IFB from a Dejero receiver

Output Device

Output: via headphone jack or Bluetooth device

RETURN VIDEO

Up to 2 CuePoint Return Video feeds

NETWORK CONNECTIONS

Blend up to 2 network connections including any of:

  • Ethernet
  • WiFi

Blend up to 3 connection types including any of:

  • 3G/4G/LTE
  • Ethernet
  • Wi-Fi
  • Satellite connections including BGAN via Wi-Fi

Blend up to 3 connection types including any of:

  • 3G/4G/LTE
  • Ethernet
  • Wi-Fi
  • Satellite connections including BGAN via Wi-Fi

USER INTERFACE

Sources

View up to 3 video tiles displaying:

  • Camera video preview
  • 1st Return Video feed
  • 2nd Return Video feed

Configuration

Video Tiles can be:

  • Resized
  • Repositioned
  • Displayed on an external monitor

Sources

Camera video preview

Configuration

Sources

Camera video preview

Configuration
